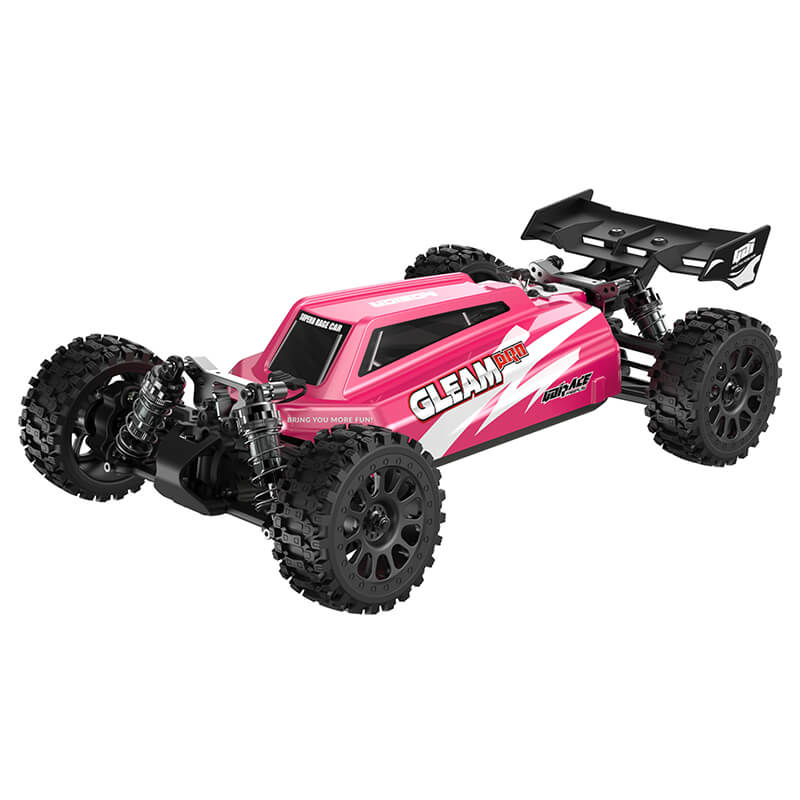

UDI RC 1/12 GLEAM 4WD BUGGY PRO BRUSHLESS RTR - PINK

Description

UDI RC 1/12 GLEAM 4WD BUGGY PRO BRUSHLESS RTR - PINK

Designed for drivers who demand more speed, more strength and more durability, the UDIRC GLEAM PRO UD1204PRO takes the proven GLEAM platform to the next level. Packed with upgraded drivetrain components and a more powerful brushless electronics package, the UD1204PRO delivers serious performance in a compact and highly capable 1:12 scale platform.

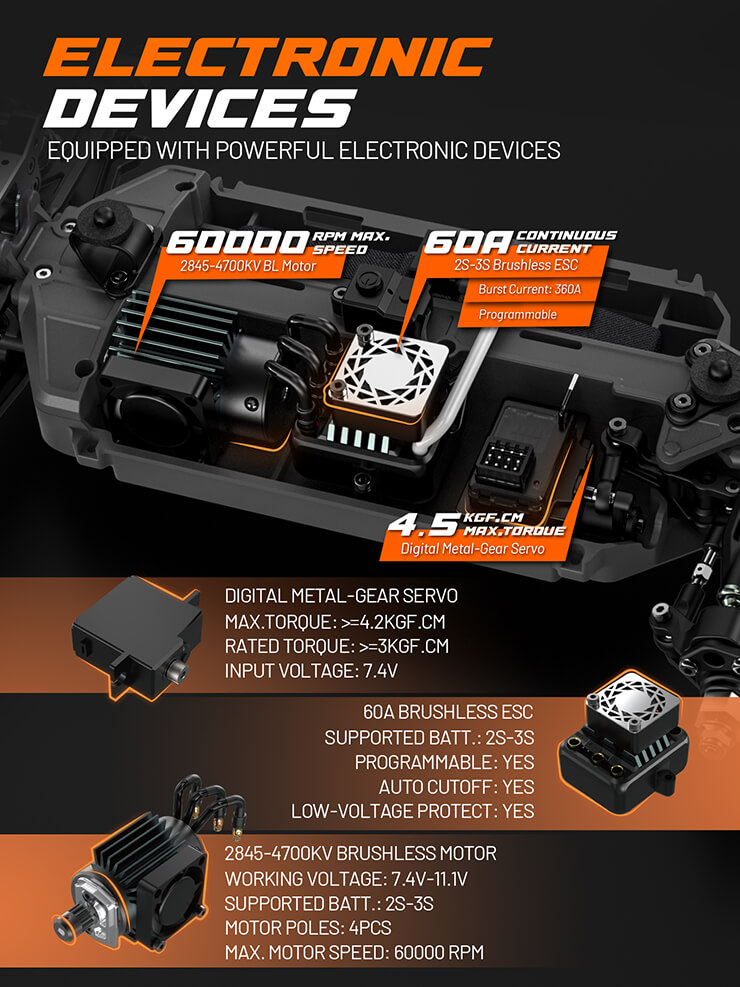

At the heart of the GLEAM PRO is a high-output 2845-4700KV brushless motor paired with a programmable 60A brushless ESC, providing explosive acceleration and support for both 2S and 3S LiPo batteries. With motor speeds reaching up to 60,000 RPM, the UD1204PRO is built to deliver thrilling speed and rapid response on dirt, gravel, tarmac and off-road terrain.

To handle the increased power, UDIRC has equipped the PRO version with a strengthened steel drivetrain featuring upgraded 40Cr chromoly steel transmission gears, steel universal joint driveshafts and a metal centre driveline. This heavy-duty transmission system is designed to maximise reliability under high loads while ensuring efficient power delivery to all four wheels.

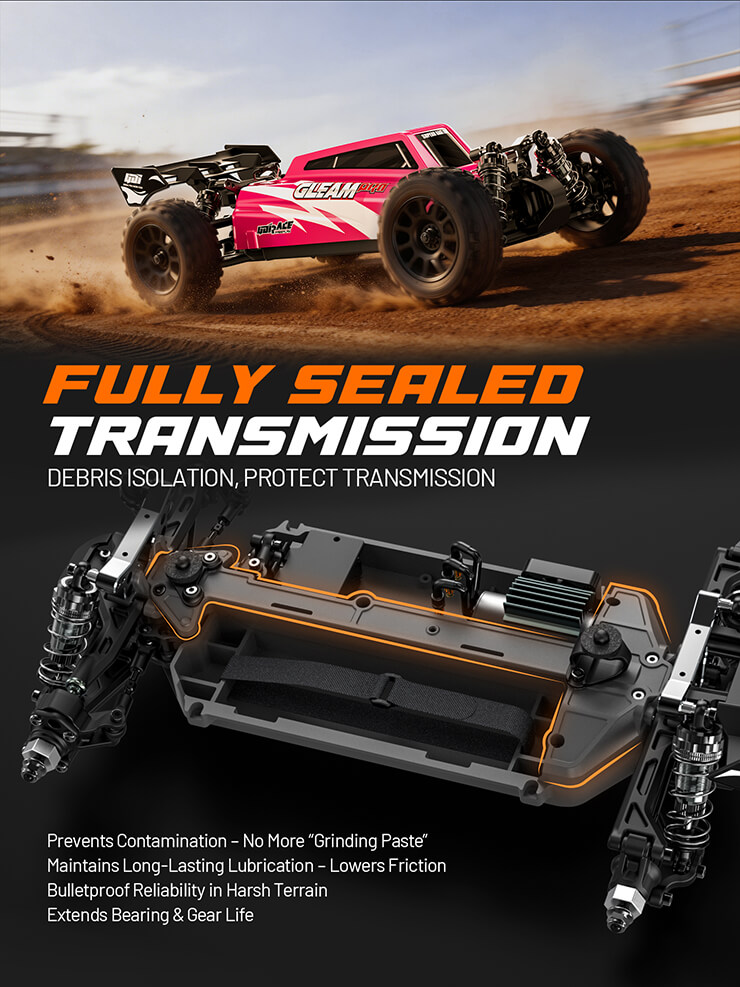

A fully enclosed transmission housing protects the drivetrain from dirt, dust, stones, and debris, helping maintain smooth operation and reducing wear during demanding off-road use. The sealed design also helps retain lubrication, lower friction and extend the lifespan of gears, bearings and drivetrain components.

Maintenance has been made remarkably simple thanks to the innovative quick-release drivetrain design. The complete centre drivetrain can be removed in seconds, while the front and rear differentials feature a rapid-access design that allows servicing or differential changes in under 30 seconds. This race-inspired modular layout dramatically reduces maintenance time and keeps drivers focused on running rather than wrenching.

Handling is equally impressive, with adjustable aluminium oil-filled hydraulic shock absorbers and a dual ball steering system that increases steering angle and precision. Combined with durable suspension components, adjustable spring preload and a wide-track chassis layout, the UD1204PRO provides excellent stability, predictable cornering behaviour and confidence-inspiring control at high speed.

The package is completed by a 17g digital metal-geared steering servo and a sophisticated hall-sensor transmitter featuring steering trim, dual-rate adjustment, integrated gyro tuning, throttle reverse functions, and selectable speed modes. Together, these features give drivers precise control and the flexibility to tailor the vehicle's behaviour to their experience level and driving conditions.

Combining premium brushless power, upgraded steel drivetrain components, race-inspired maintenance features and rugged off-road capability, the UDIRC GLEAM PRO Buggy is engineered to deliver big performance in a compact package.

Features

Performance

• 1:12 scale shaft-driven 4WD truggy.
• High-performance 2845-4700KV 4-pole brushless motor.
• Programmable 60A brushless ESC.
• Supports 2S and 3S LiPo batteries.
• Maximum motor speed up to 60,000 RPM.
• 360A ESC burst current capability.
• XT60 battery connector.

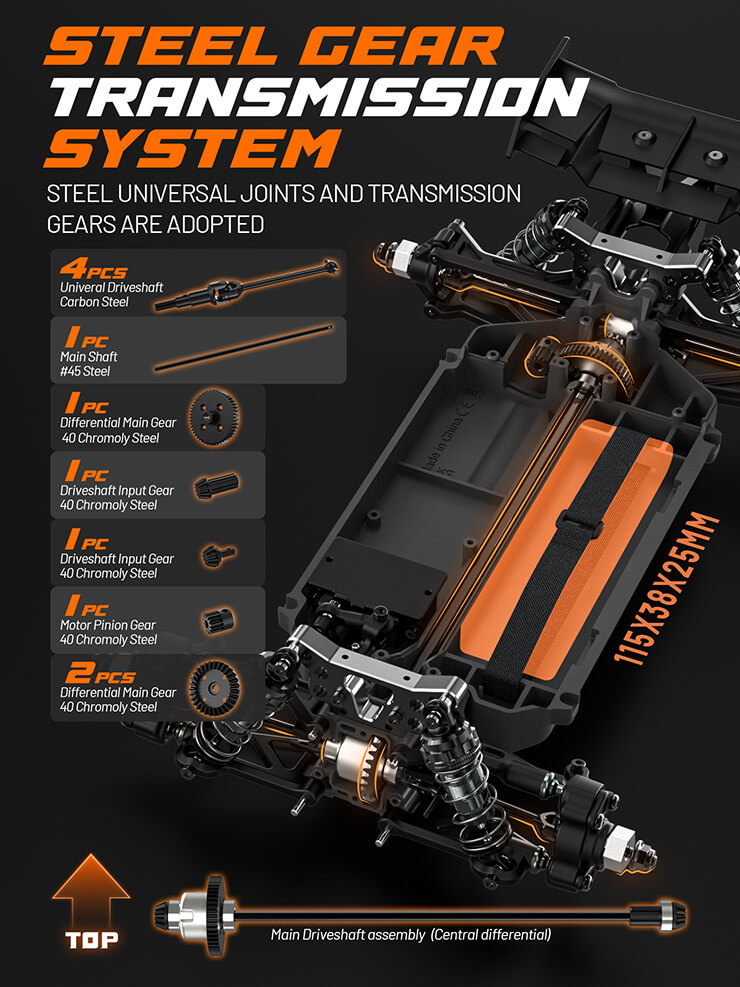

Heavy-Duty Drivetrain

• Upgraded steel gear transmission system.
• 40Cr chromoly steel differential gears.
• 40Cr chromoly steel pinion gear.
• 40Cr chromoly steel transmission input gears.
• Steel universal joint driveshafts.
• Metal centre driveshaft.
• Metal differential sun and planetary gears.
• Fully sealed transmission housing.
• Designed for improved durability under high-power brushless operation.

Maintenance-Friendly Design

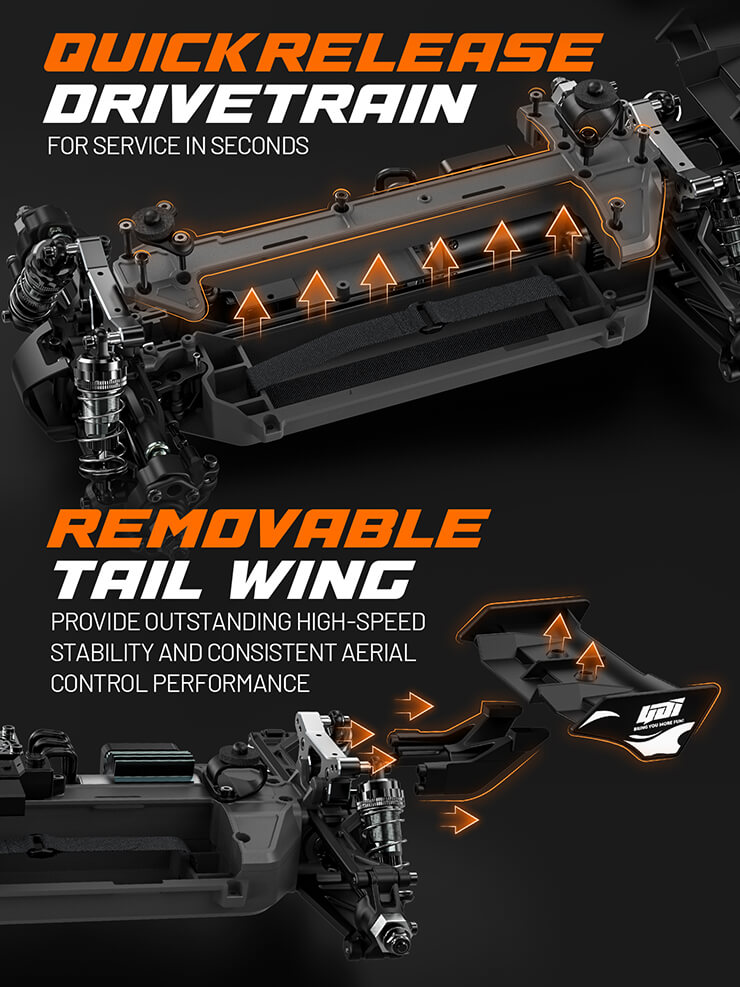

• Quick-release centre drivetrain system.

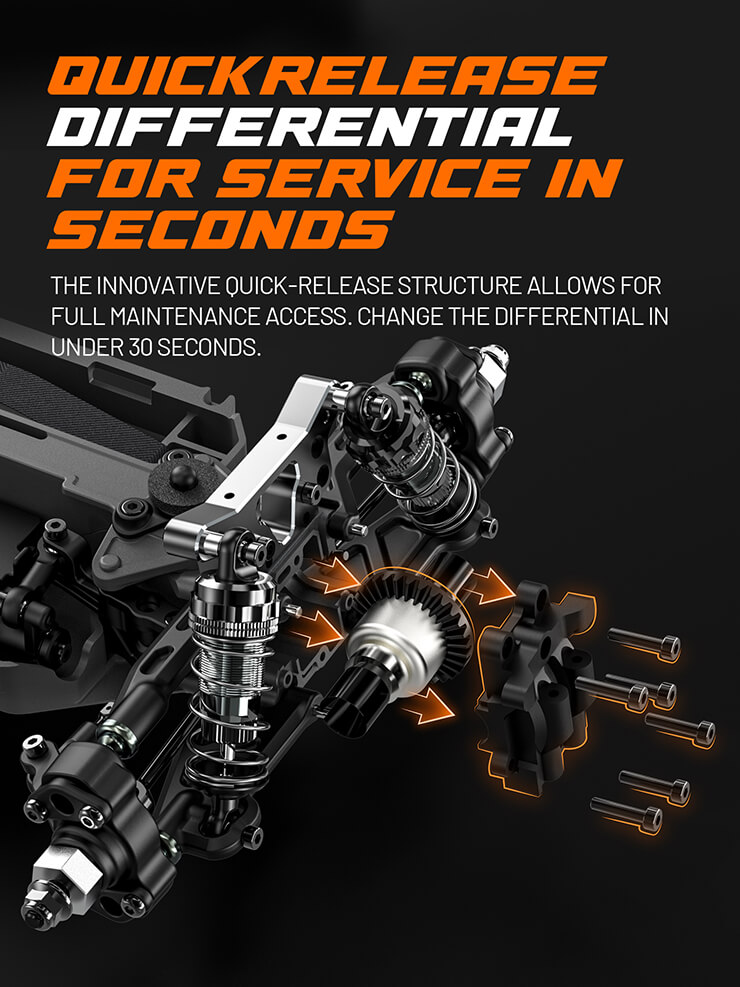

• Differential removal and servicing in under 30 seconds.
• Modular drivetrain layout for simplified maintenance.
• Easy access to key drivetrain components.
• Removable rear wing assembly.

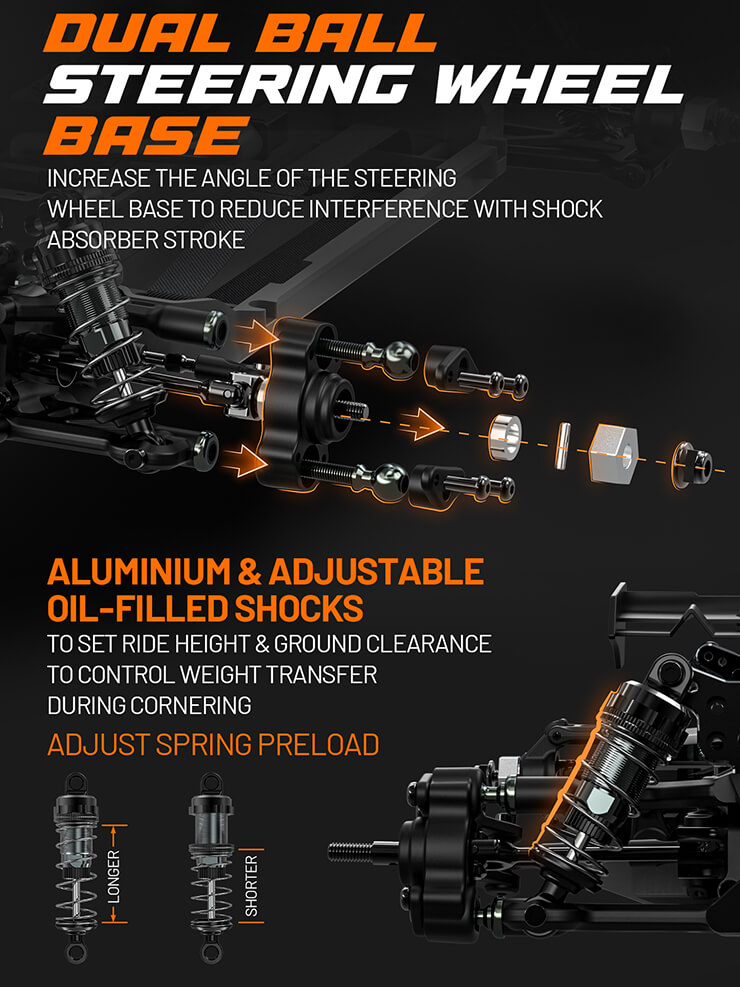

Suspension & Handling

• Adjustable aluminium hydraulic oil-filled shock absorbers.
• Adjustable spring preload.
• Ride height adjustment capability.
• Dual ball steering system for increased steering angle.
• Adjustable metal steering linkages.
• Wide stance for improved stability.
• Durable nylon suspension arms and bumpers.

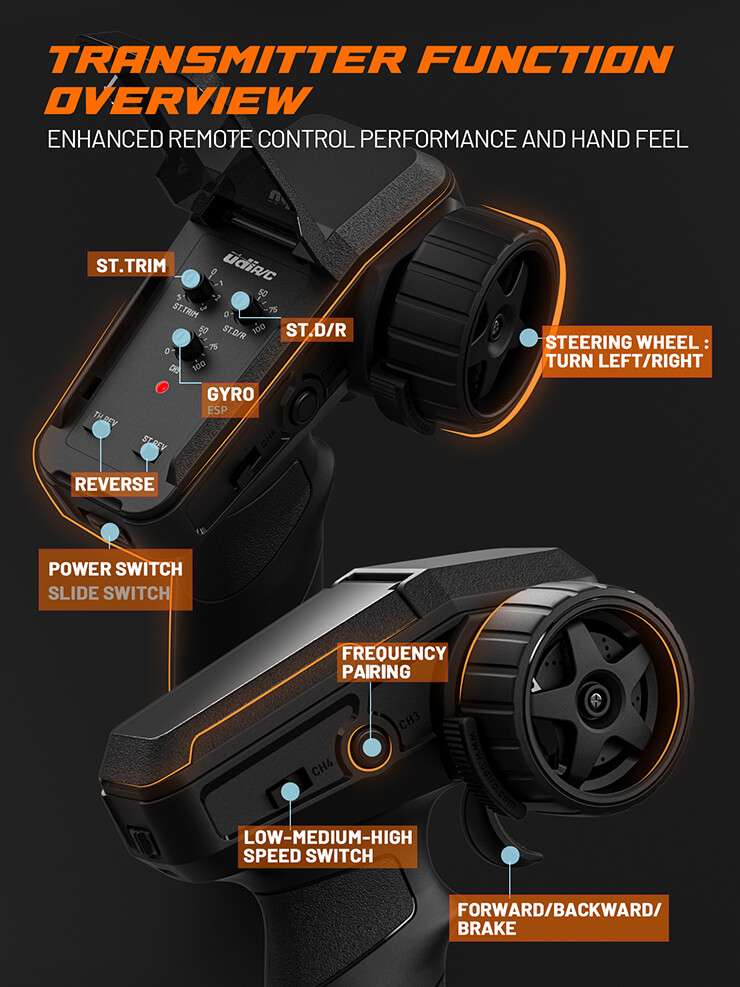

Electronics & Control

• 17g digital metal-geared steering servo.

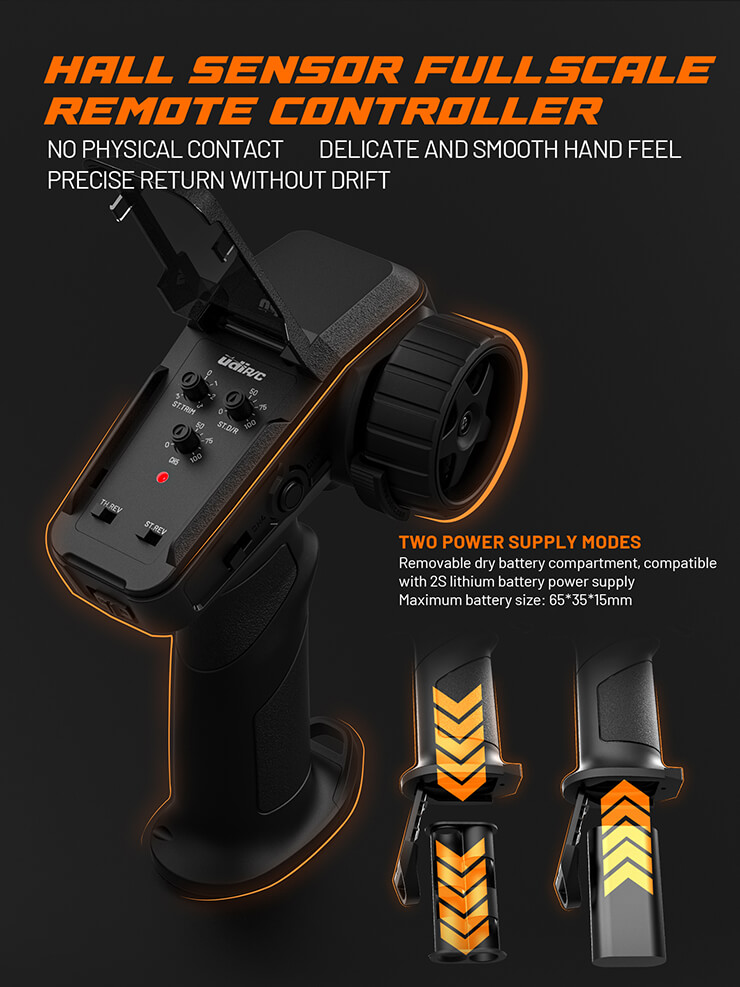

• Hall-sensor steering wheel transmitter.
• Integrated gyro adjustment.
• Steering trim adjustment.
• Steering dual-rate adjustment.
• Forward, brake and reverse functions.
• Low, medium and high-speed modes.
• Precision contactless steering wheel control.

Specifications

Scale: 1:12
Drive System: Shaft-Driven 4WD
Length: 345mm
Width: 193mm
Height: 103mm
Wheelbase: 228mm
Track Width: 168mm
Tyre Diameter: 66mm
Tyre Width: 26mm
Wheel Hex: 12mm
Motor: 2845-4700KV Brushless
ESC: 60A Brushless ESC
ESC Battery Support: 2S–3S LiPo
Servo: 17g Digital Metal Gear
Battery Connector: XT60
Main Gear: 38T 0.8M Steel
Motor Pinion: 10T 0.8M Steel
Differential Ring Gear: 30T 1M Steel
Differential Bevel Gear: 10T 1M Steel
Differential Sun Gear: 16T 0.8M Metal
Differential Planet Gear: 8T 0.8M Metal
Driveshafts: Steel Universal Joint Type
Main Shaft: Metal
Shocks: Adjustable Aluminium Hydraulic
Shock Length: 76.3mm Extended / 58.3mm Compressed
Battery Tray Size: 115 x 38 x 25mm
Radio System: UA42-E Hall Sensor Transmitter
Bodyshell Material: PC

UD1204PRO vs UD1204
