Description
UDI RC UCX24 SNOW LEOPARD 1/24 CRAWLER RTR BRUSHLESS 4WS BLACK
Features
High Bright LED Lights
- Headlights.
- Taillight.
- Upgradeable (Taillight/Turn lamp/Backup light).
Decoration
- Molded simulation fan.
- The age is molded from impact Nylon.
Wheels And Tyres
Equipped With High-Speed Sealed Ball Bearings
Metal Transmission
Metal mechanical variable speed
Suspension
- Provide proportional appearance and realistic off-road driving dynamics.
- Front and rear independent suspension damping system.
- Front and rear independent axles.
Steering
- 0.5kg digital Steering Servo.
- Upgradeable to front and rear steering.
Drivetrain
- Shiftable central gearbox.
- Upgradeable to differential.
- Front and rear universal drive shaft.
Specifications
Model Scale: 1/24
Model Type: Off-road
Assembly Time: Installing the battery
Completion Level: RTR

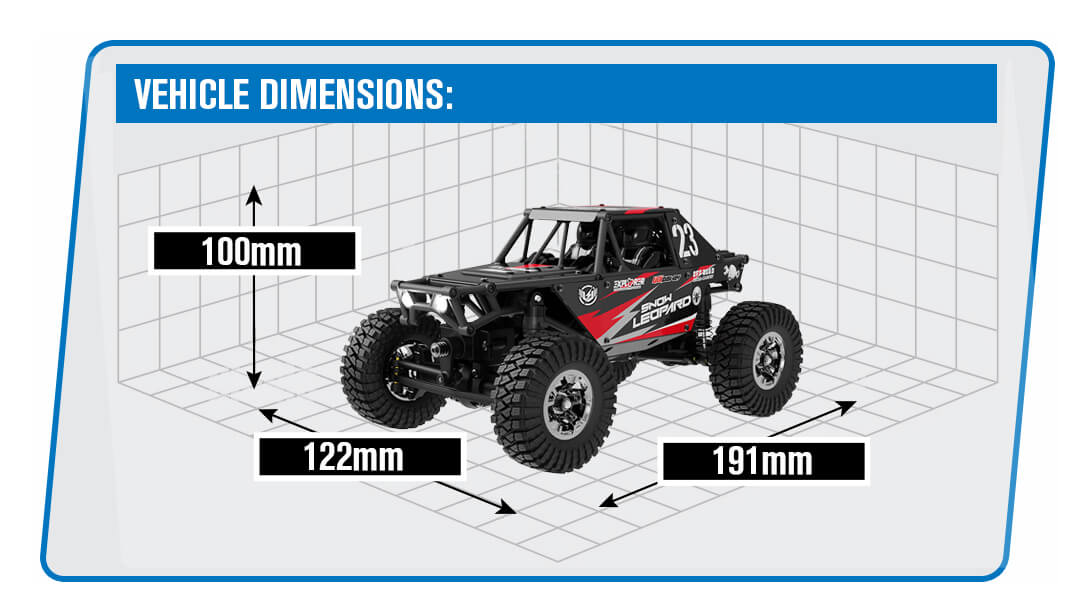

Length: 191mm
Width: 122mm
Height: 100mm
Weight: 352g (Included battery)
Front Wheel Track: 102mm
Rear Wheel Track: 102mm
Wheelbase: 135mm
Ground Clearance: 27mm
Transmission Distance: About 50m
Power Type: Electric
Motor Type: Brushless
Differential: None (upgradable)
Drive System: 4 wheel drive
Drive Type: R/N/D/S
Gear Ratio (High): 1:9.3
Gear Ratio (Low): 1:58.6
Tyre Diameter: 55mm
Wheel Hub Diameter: 28.5mm
Transmitters: UA37D
Receiver: Included
Servo: Included
Suspension: Independent
Car Lights: Including
Motor Type: Brushless motor
Weight: About 15.4g
Size: 1212-01-1/L60DZ
Dimensions: 29.5mm overall length, 22.5mm can length, 15.8mm diameter
Output shaft: 2mm
Input Voltage: 2s LiPo
Case Size: L33.4mm × W30mm × H12.3
Weight: About 10.8g
Low Voltage Detection (LVD): supported
Weak Signal Detection (WSD): supported
BEC: 5V,1A
Waterproof Level: None
Crawl Mode: 4WD, Reverse, Changing gears, Front/Rear axle steering
Lighting Modes:Headlight, Turn lamp, Taillight, Backup lights, H/light, Fog lamp
Steering Servo
Case Size: 5g regular servo
Torque: 0.5kg
Gear shift servo
Case Size: 5g regular servo
Torque: 0.5kg
What's Included
- Snow-Leopard 2405
- The vehicle with SCR and motor
- 2.4GHz transmitter
- Operation Guide
- Body sticker (complimentary, non matching)
- 350mAh, 7.4V Lipo battery
- USB charger
Needed To Complete
- Battery for transmitter: 4 × 1.5V, AAA lkaline battery
