Description

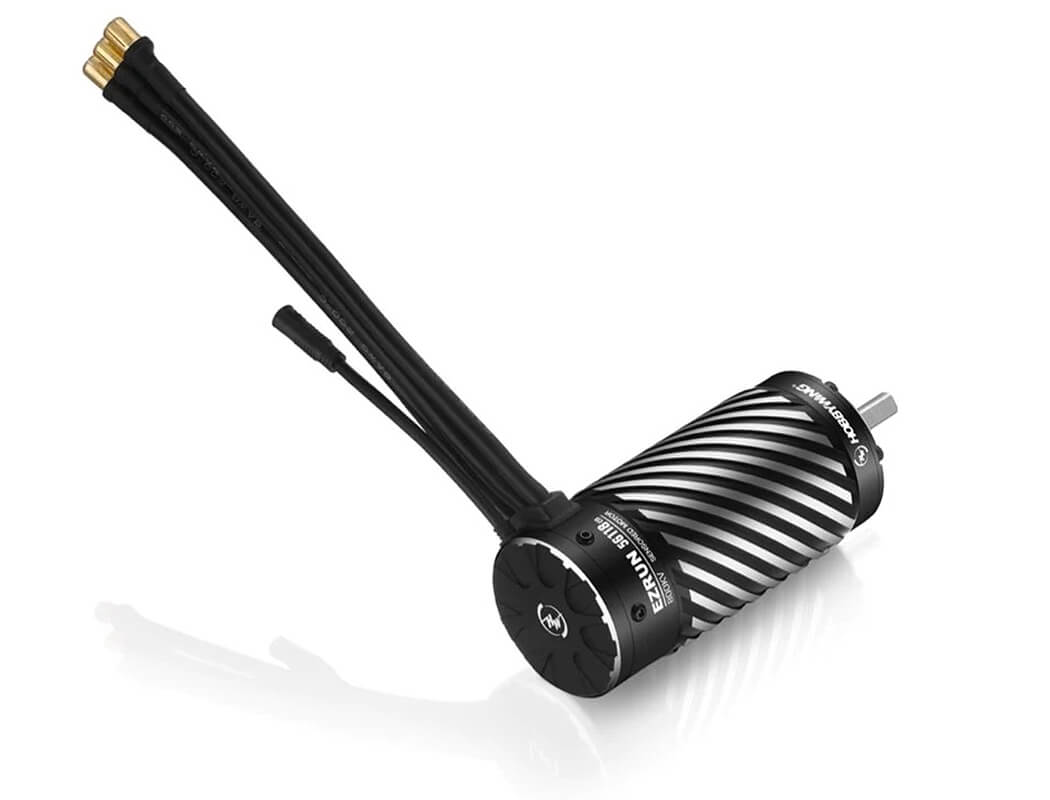

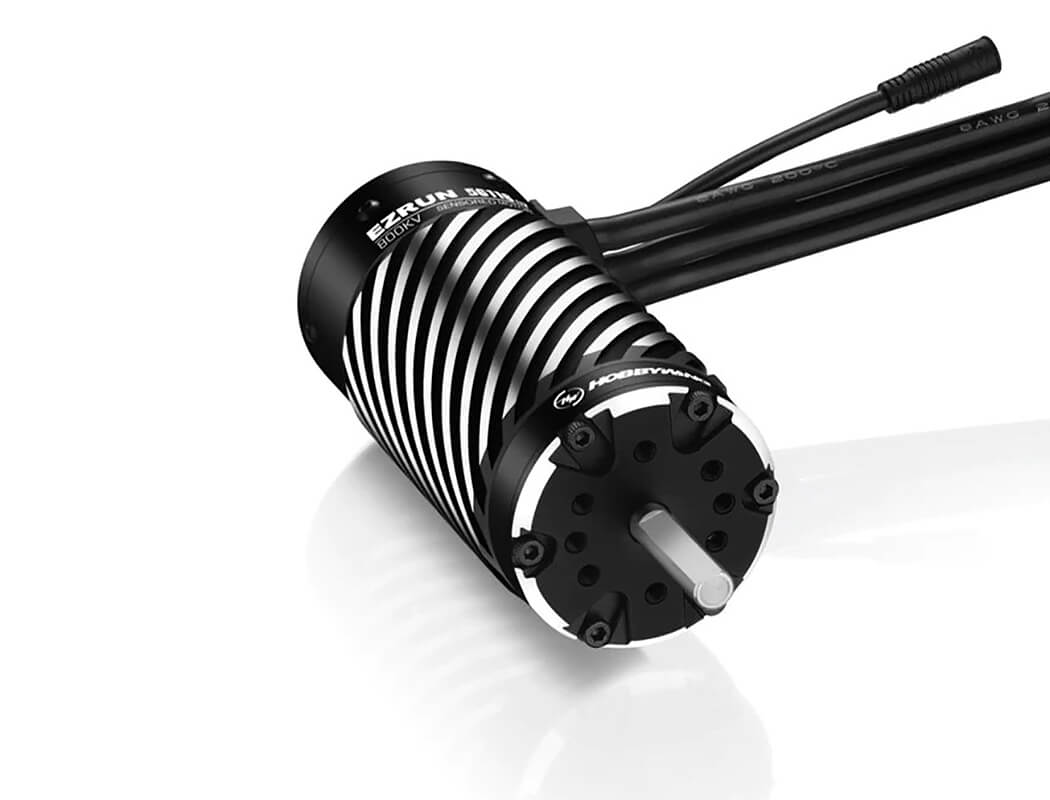

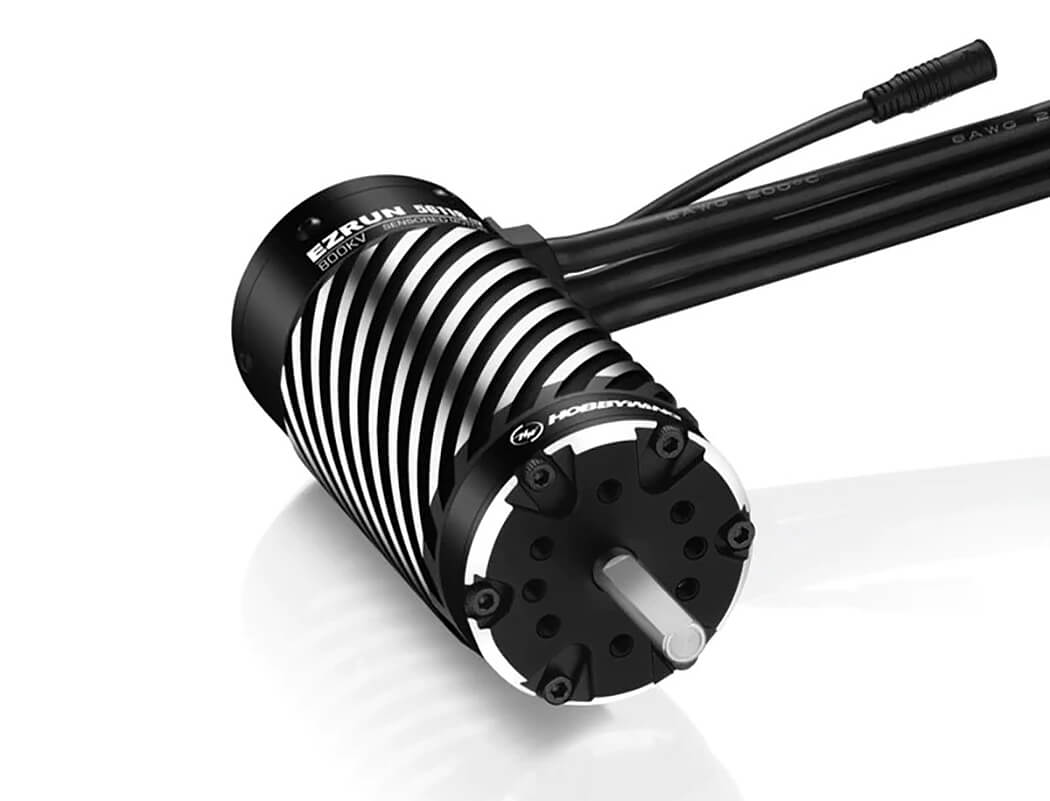

HOBBYWING EZRUN 1/5TH 56118SD 800KV MOTOR G2 (BLACK)
Features
- Compared with the previous generation, ithas added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.
- It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.
Specifications
KV: 800KV
LiPo's: 8-12S
No-Load Current: 6.9A
Diameter / Length: 56mm (2.20") 30mm (1.18")
Shaft Diameter / Length: 8mm (0.31") 30mm(1.18")
Bearing SIze (mm): Front: D22*D8*T7 Rear: D19*D8*T6
Poles: 4
Weight: 1277g
Applications: 1/5th Buggy, Truck
