Description

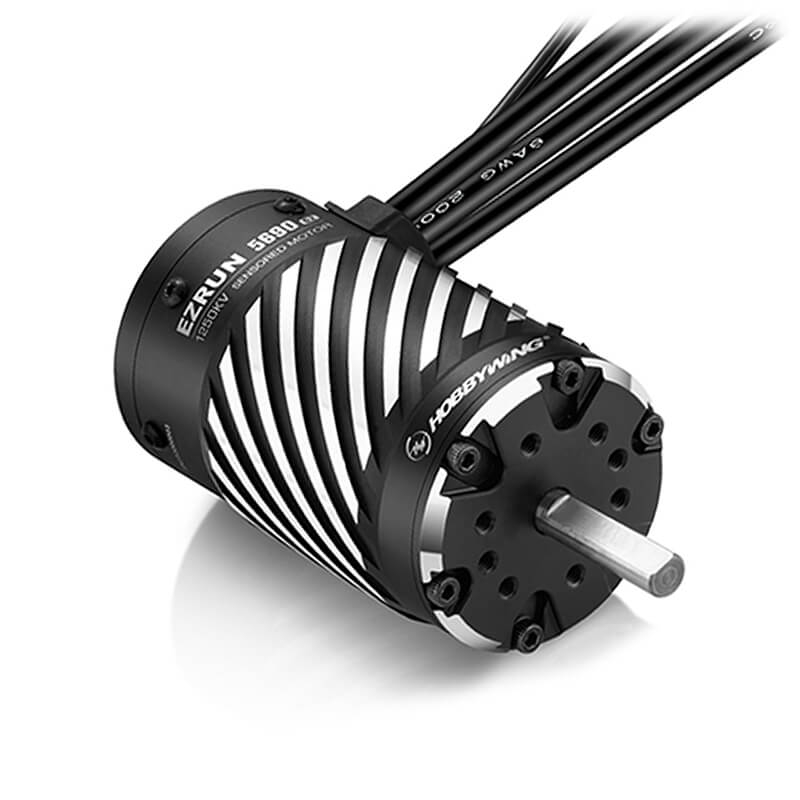

HOBBYWING EZRUN 5690SD 1250KV BLACK G2 SENSORLESS MOTOR
Hobbywing wants to set new standards with the EzRun 5690 SD G2 motor. The elegant and appealing design meets unconventional dimensions and the new sensor cable. The power of this 8S sensor-controlled motor made of highly hardened CNC aluminium and a durable rotor should not be underestimated, because it is known for its dynamics and dominance. And with the linear feeling even at low speeds, a wide range of maneuvers can be maintained.
The EzRun 5690 SD G2 also shows no weaknesses when it comes to connections. So if you can't get started with the 6.5mm connections, there are 8mm plugs included so that the motor also fits the Max5 G2 ESC, for example. The sensor cable is additionally designed to be waterproof and most importantly tight when used properly. Even if the entire motor offers protection against water and dust according to the IP67 standard, something can always happen. In this case, the purely modular design of the motor allows for quick and easy maintenance.
Features
- Sensor controlled system with improved acceleration linearity and more power
- Recommended to be used with the EzRun Max6 or Max5 ESC for a fully sensor-driven experience
- The independent high-precision encoder effectively prevents interference from sensor signals
- Water and dustproof according to I67 standard
- Easily disassembled for maintenance
Specifications
Type: Brushless Sensored
KV Rating: 1250kV
No-Load Current: 6.6A
LiPo Cells: 3-8S
Poles: 4
Diameter: 56mm
Length: 90.2mm
Shaft Diameter: 8mm
Shaft Length: 30mm
Weight: 867g
Application: 1/6 Short Course Truck, Truck, 1/5 Light Load Truck
