Description

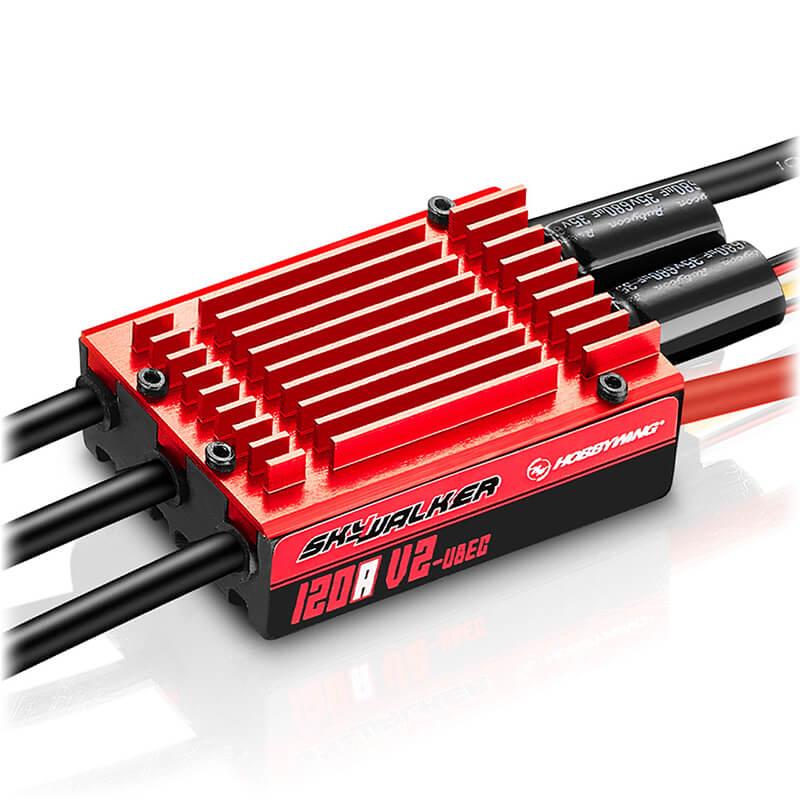

HOBBYWING SKYWALKER 120A 8S V2 SPEED CONTROL
Features
- Compatible with various brushless motors
- High performance 32-bit ARM M0 microprocessor, running frequency of up to 120MHz
- Equipped with DEO (Driving Efficiency Optimization) technology to improve throttle response and reduce controller temperature
- Normal/Reverse brake modes (esp. reverse brake mode) can effectively reduce the plane's landing distance with the programmable braking modes
- Various protections such as low voltage shutdown, overheat protection and throttle signal loss protection
- Search mode can help users find the aircraft with alarm beeps if the aircraft falls into trouble
- Easily programmable with the LED program box (HW30501003) or the transmitter
Specifications
Brushed/Brushless: Brushless
High Voltage/Regular: Regular
Cont. Current: 120A
Peak Current: 150A up to 10 sec
Input Voltage: 3-8S LiPo
BEC Output: 5V / 6V / 7.4V / 8.4V Switch Mode BEC
BEC Current (Cont./Peak): 10A/30A
Input Wires: Red 10AWG 150MM*1 / Black 10AWG 150MM*1
Output Wires: Black 12AWG 100MM*3
Input Connectors: No
Output Connectors: 4.0 Gold Connectors (Female)
ESC Programming: Transmitter/LED Program Box only
Firmware Upgrade: Not Supported
Dimensions: 85x35x22mm
Weight: 117g
